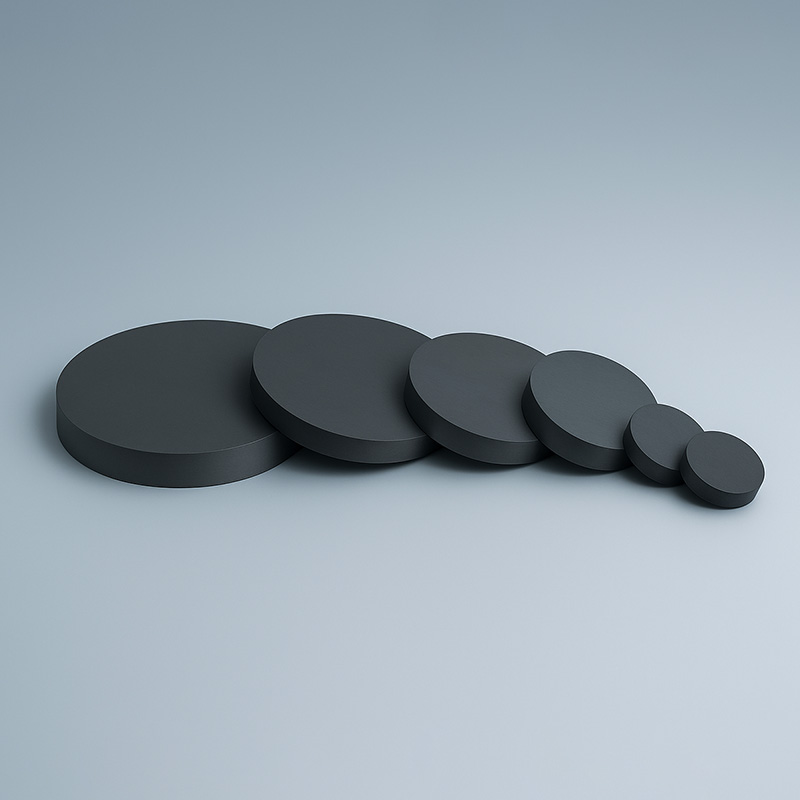

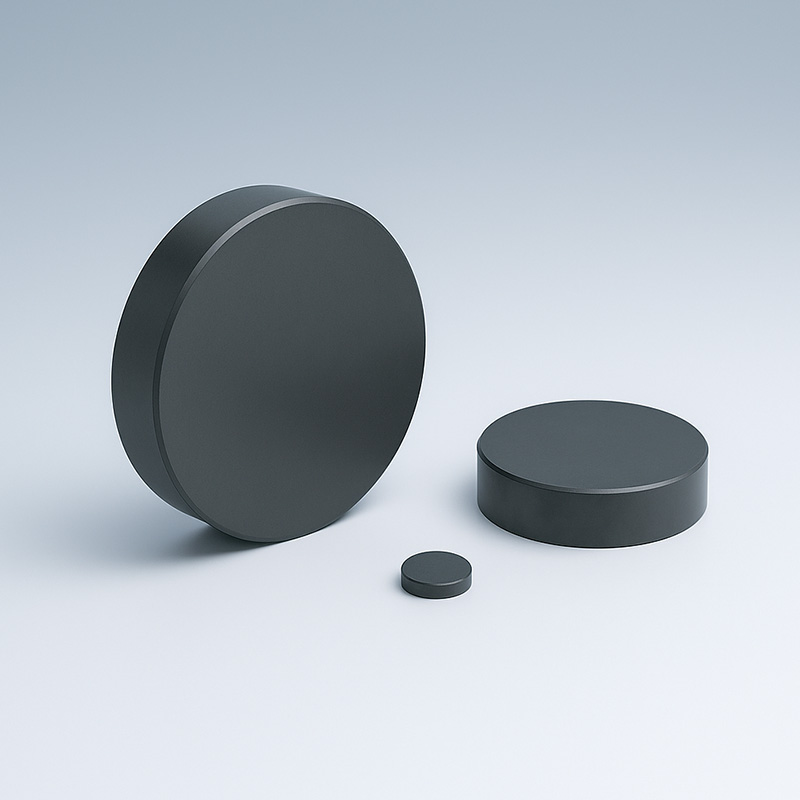

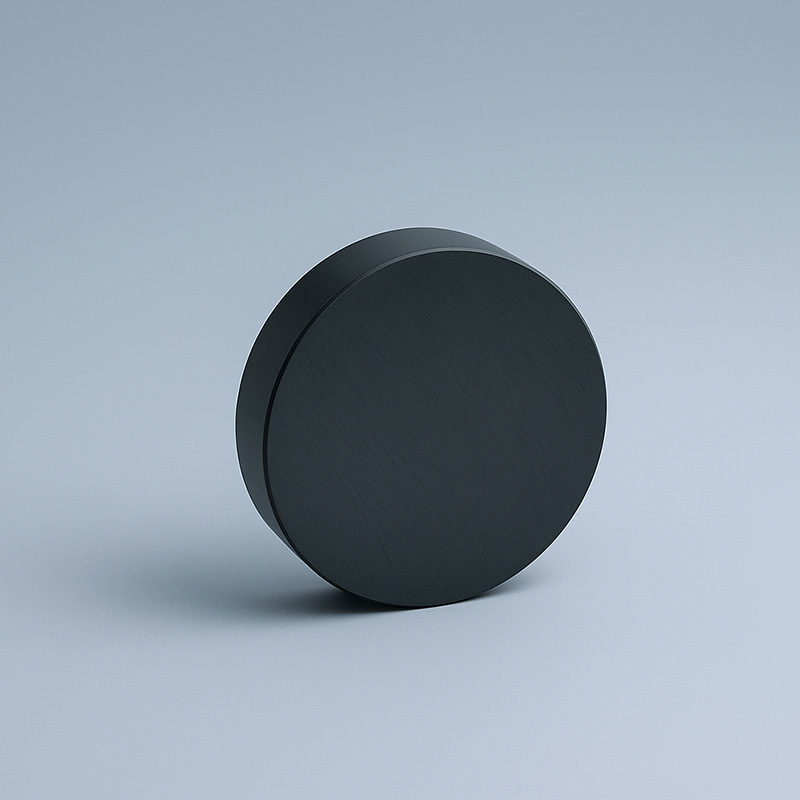

Ferrite disk magnets are circular magnets with a flat profile made from iron oxide-based ceramic material. These magnets are widely recognized for their low cost, stable performance, and high resistance to environmental factors. The simple round shape is easy to integrate into various products, making them one of the most commonly used types of ceramic magnets.
They are typically used in audio equipment, magnetic holders, toys, and small electronic appliances.
Ferrite disk magnets are durable and function well across a broad temperature range. While their magnetic strength is lower than that of neodymium magnets, they provide a reliable solution for low to medium power applications that don’t require ultra-strong magnets.
Why choose Ferrite Disk Magnet
● Affordable and accessible: An excellent choice for budget-conscious designs.
● Non-conductive: Suitable for electronic applications where insulation is needed.
● Chemical stability: Will not corrode or degrade in humid environments.
● Versatile design: Simple round shape fits into many product types.
● Environmentally friendly: No plating or toxic materials used in manufacturing.
Ferrite disk magnets are widely used in audio speakers, refrigerator magnets, promotional items, educational kits, and small motors. Their cost-effectiveness and resistance to wear make them an excellent choice for high-volume applications where performance and economy must be balanced.
Physical Characteristics
Material | Br | Hcb | Hcj | (BH)max | Remarks | ||||
(Gs) | (mT) | (Oe) | (kA/m) | (Oe) | (MGOe) | (kJ/m)3 | |||
KV2130 | 2000-2350 | 200-235 | 1570-2009 | 125-160 | 2637-3516 | 210-280 | 0.81-1.19 | 6.5-9.5 | HF8/22、Y8T、C1、FB1A |
KV2330 | 2200-2400 | 220-240 | 1695-2198 | 135-175 | 3491-4019 | 278-320 | 1.06-1.39 | 8.5-11.1 | Y10T |
KV3337 | 3100-3600 | 310-360 | 2763-3140 | 220-250 | 3516-4019 | 280-320 | 2.5-3.5 | 20-24 | HF20/28、Y22H |
KV3631 | 3500-3800 | 350-380 | 2826-3140 | 225-250 | 2951-3265 | 235-260 | 3.1-3.7 | 24.7-29.5 | HF25/22、Y26H-1 |
KV3640 | 3500-3700 | 350-370 | 3100-3500 | 247-279 | 3800-4300 | 303-342 | 2.8-3.4 | 22.3-27.1 | C7、PMF-2BB |
KV3730 | 3600-3900 | 360-390 | 2512-3140 | 200-250 | 2836-3202 | 225-255 | 2.9-3.5 | 23.1-27.9 | HF22/30、Y27H |
KV3742 | 3600-3800 | 360-380 | 3303-3617 | 241-288 | 3994-4396 | 318-350 | 3.0-3.5 | 23.9-27.9 | HF24/35、Y26H-2 |
KV3749 | 3600-3800 | 360-380 | 3391-3705 | 270-295 | 4797-5086 | 382-405 | 3.3-3.8 | 26.3-30.3 | Y28H-2 |
KV3820 | 3600-4000 | 360-400 | 1695-2135 | 135-170 | 1758-2512 | 140-200 | 2.8-3.5 | 22.3-27.9 | HF25/14、Y25 |
KV3825 | 3700-4000 | 370-400 | 2198-2637 | 175-210 | 2260-2763 | 180-220 | 2.9-3.8 | 23.1-30.3 | HF26/18、Y28 |
KV3828 | 3700-4000 | 370-400 | 2300-2700 | 183-215 | 2500-3000 | 199-239 | 2.9-3.8 | 23.1-30.3 | C5 |
KV3838 | 3700-4000 | 370-400 | 3200-3600 | 255-287 | 3700-4100 | 263-326 | 3.0-3.7 | 23.9-29.5 | C9 |
KV3849 | 3700-3900 | 370-390 | 3100-3500 | 246-279 | 4800-5200 | 382-415 | 3.1-3.7 | 24.7-29.5 | Y28H-2、FB6E、PMF-2BF |
KV3926 | 3800-4000 | 380-400 | 2300-2700 | 183-215 | 2400-2800 | 191-223 | 3.4-4.0 | 27.1-31.8 | Y30 |
KV3930 | 3800-4050 | 380-405 | 2800-3200 | 223-255 | 2900-3300 | 230-263 | 3.4-4.0 | 27.1-31.8 | HF26/26、Y30H-1、Y30BH |
KV3934 | 3800-4000 | 380-400 | 3000-3400 | 238-270 | 3200-3600 | 255-287 | 3.5-4.0 | 22.3-31.8 | C8、PMF-2BD |
KV3939 | 3800-4000 | 380-400 | 3200-3600 | 255-287 | 3800-4200 | 303-334 | 3.2-4.0 | 25.5-31.8 | HF26/30、PMF-2BE |
KV4026 | 3900-4100 | 390-410 | 2300-2700 | 183-215 | 2400-2800 | 191-223 | 3.3-4.0 | 26.3-31.8 | HF32/17 |
KV4030 | 3900-4100 | 390-410 | 2800-3200 | 223-255 | 2900-3300 | 230-263 | 3.5-4.1 | 22.3-32.6 | FB3N、C8A |
KV4034 | 3900-4100 | 390-410 | 3000-3400 | 238-270 | 3200-3600 | 255-287 | 3.5-4.2 | 22.3-33.4 | FB4B、C10 |
KV4038 | 3900-4100 | 390-410 | 3200-3600 | 255-287 | 3600-4000 | 287-318 | 3.6-4.2 | 28.7-33.4 | |
KV4040 | 3900-4150 | 390-415 | 3300-3700 | 263-295 | 3800-4200 | 303-334 | 3.6-4.3 | 28.7-34.2 | FB5H、Y30H-2、C12、PMF-5BE |
KV4045 | 3900-4100 | 390-410 | 3300-3700 | 263-295 | 4350-4800 | 346-382 | 3.6-4.3 | 28.7-34.2 | FB6B、PMF-6BE |
KIV4050 | 3900-4100 | 390-410 | 3400-3800 | 270-303 | 4800-5200 | 382-415 | 3.5-4.2 | 22.3-33.4 | PMF-6BE |
KV4123 | 4000-4200 | 400-420 | 2000-2400 | 159-191 | 2100-2500 | 167-199 | 3.6-4.2 | 28.7-33.4 | |
KV4126 | 4000-4200 | 400-420 | 2300-2700 | 183-215 | 2500-2900 | 199-231 | 3.6-4.3 | 28.7-34.2 | |
KV4129 | 4000-4200 | 400-420 | 2700-3100 | 215-247 | 2800-3200 | 223-255 | 3.7-4.3 | 29.5-34.2 | |
KV4132 | 4000-4200 | 400-420 | 2900-3300 | 230-263 | 3000-3400 | 238-270 | 3.7-4.3 | 29.5-34.2 | |
KV4135 | 4000-4200 | 400-420 | 3100-3500 | 246-279 | 3300-3700 | 263-295 | 3.8-4.4 | 30.3-35 | FB5B、PMF-5BD、Y33H |
KV4138 | 4000-4200 | 400-420 | 3300-3700 | 263-295 | 3600-4000 | 287-318 | 3.8-4.4 | 30.3-35 | |
KV4141 | 4000-4200 | 400-420 | 3400-3800 | 270-303 | 3900-4300 | 310-342 | 3.8-4.5 | 30.3-35.8 | |
KV4150 | 4000-4200 | 400-420 | 3400-3800 | 270-303 | 4800-5200 | 382-415 | 3.8-4.5 | 30.3-35.8 | |
KV4228 | 4100-4300 | 410-430 | 2400-2800 | 191-223 | 2600-3000 | 207-239 | 3.8-4.5 | 30.3-35.8 | |
KV4230 | 4100-4300 | 410-430 | 2600-3000 | 207-239 | 2800-3200 | 223-255 | 3.8-4.5 | 30.3-35.8 | |
KV4234 | 4100-4300 | 410-430 | 3000-3400 | 239-270 | 3200-3600 | 255-287 | 3.9-4.5 | 31-35.8 | FB4X、PMF-6BB、C11、Y33 |
KV4237 | 4100-4300 | 410-430 | 3200-3600 | 255-287 | 3500-3900 | 279-310 | 3.9-4.6 | 31-36.6 | |
KV4240 | 4100-4300 | 410-430 | 3500-3900 | 279-310 | 3800-4200 | 303-334 | 4.0-4.6 | 31.8-36.6 | PMF-7BE |
KV4245 | 4100-4300 | 410-430 | 3500-3900 | 279-310 | 4350-4800 | 346-382 | 4.0-4.6 | 31.8-36.6 | |
KV4254 | 4100-4300 | 410-430 | 3600-4000 | 287-318 | 5100-5500 | 406-438 | 4.0-4.6 | 31.8-36.6 | PMF-9BG |
KV4328 | 4200-4400 | 420-440 | 2500-2900 | 199-231 | 2600-3000 | 207-239 | 4.0-4.6 | 31.8-36.6 | |
KV4335 | 4200-4400 | 420-440 | 3200-3600 | 255-287 | 3400-3800 | 270-303 | 4.1-4.5 | 32.6-35.8 | FB6N、PMF-7BD、Y36 |
KV4350 | 4200-4400 | 420-440 | 3600-4100 | 287-326 | 4800-5200 | 382-415 | 4.1-4.7 | 32.6-37.4 | FB9H、PMF-9BF |
KV4429 | 4300-4500 | 430-450 | 2700-3100 | 215-247 | 2800-3200 | 223-255 | 4.1-4.8 | 32.6-38.2 | PMF-7BB |
KV4435 | 4300-4500 | 430-450 | 3000-3400 | 239-270 | 3300-3700 | 263-295 | 4.1-4.8 | 32.6-38.2 | |
KV4445 | 4300-4500 | 430-450 | 3700-4100 | 295-326 | 4300-4700 | 342-375 | 4.2-4.8 | 33.4-38.2 | FB9B、PMF-9BE、Y40 |
KV4450 | 4300-4500 | 430-450 | 3700-4200 | 295-334 | 4800-5200 | 382-415 | 4.1-4.8 | 32.6-38.2 | PMF-12BG |
KV4537 | 4400-4600 | 440-460 | 3100-3600 | 246-287 | 3500-4000 | 279-318 | 4.2-5.0 | 33.4-39.8 | FB9N、PMF-9BD、Y38 |
KV4647 | 4500-4700 | 450-470 | 3600-4200 | 287-334 | 4500-4900 | 358-390 | 4.3-5.2 | 34.2-41.4 | PMF-12BF |
